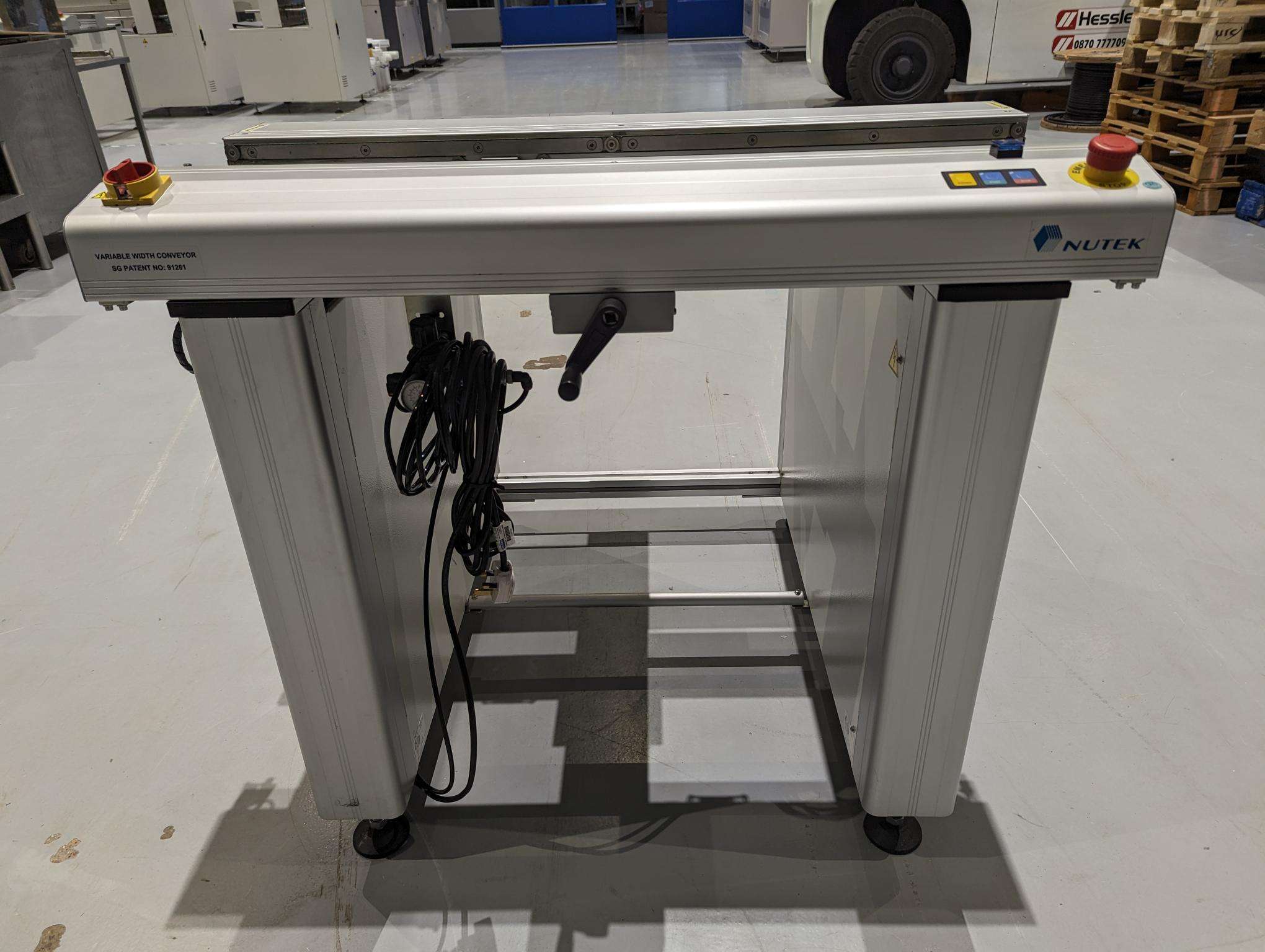

Nutek Linking Conveyor, XXL Size, NTM410XXL-1000-1 (New Type), Year: 2014 (Serial Nr.: 2014-0090E01)



PXL_20240105_134408173PXL_20240105_134408173
PXL_20240105_134416741PXL_20240105_134416741
PXL_20240105_134426225PXL_20240105_134426225

Nutek Linking Conveyor, XXL Size, NTM410XXL-1000-1 (New Type), Year: 2014 (Serial Nr.: 2014-0090E01)

Category:
  • Description

Description

Nutek Linking Conveyor, XXL size, 1000mm (NEW TYPE)

Type: NTM410XXL-1000-1

Serial Nr.: 2014-0090E01

Year of Manufacture: 2014

Direction: Left to Right

Transfer height: 900mm (+/-25mm)

PCB size: 50 – 650mm (W)/ 80 – 950mm (L)

Product thickness: 0.60 – 1.60mm

Component Height: Top: 30mm max/ Below: 30mm max

Voltage: 220V, 50/60Hz

Pressure: – Bar

Air consumption: – l/minute

Dimension (in mm): 1000 (W) x 860 (D) x 910 (H)

Weight: 60Kg



Function:

This machine transfers PCB from Upstream machine to Downstream machine through communication signals. Only one PCB is allowed during each cycle of transfer.
