Description

Nutek Dual Track Linking Conveyor, 1000mm

Type: NTM410DT-1000-1

Functions: This machine transfers PCB from Upstream machine to Downstream machine through a 2 Dual Track Single Lane conveyance via communication signals. Only one PCB is allowed during each lane of transfer.

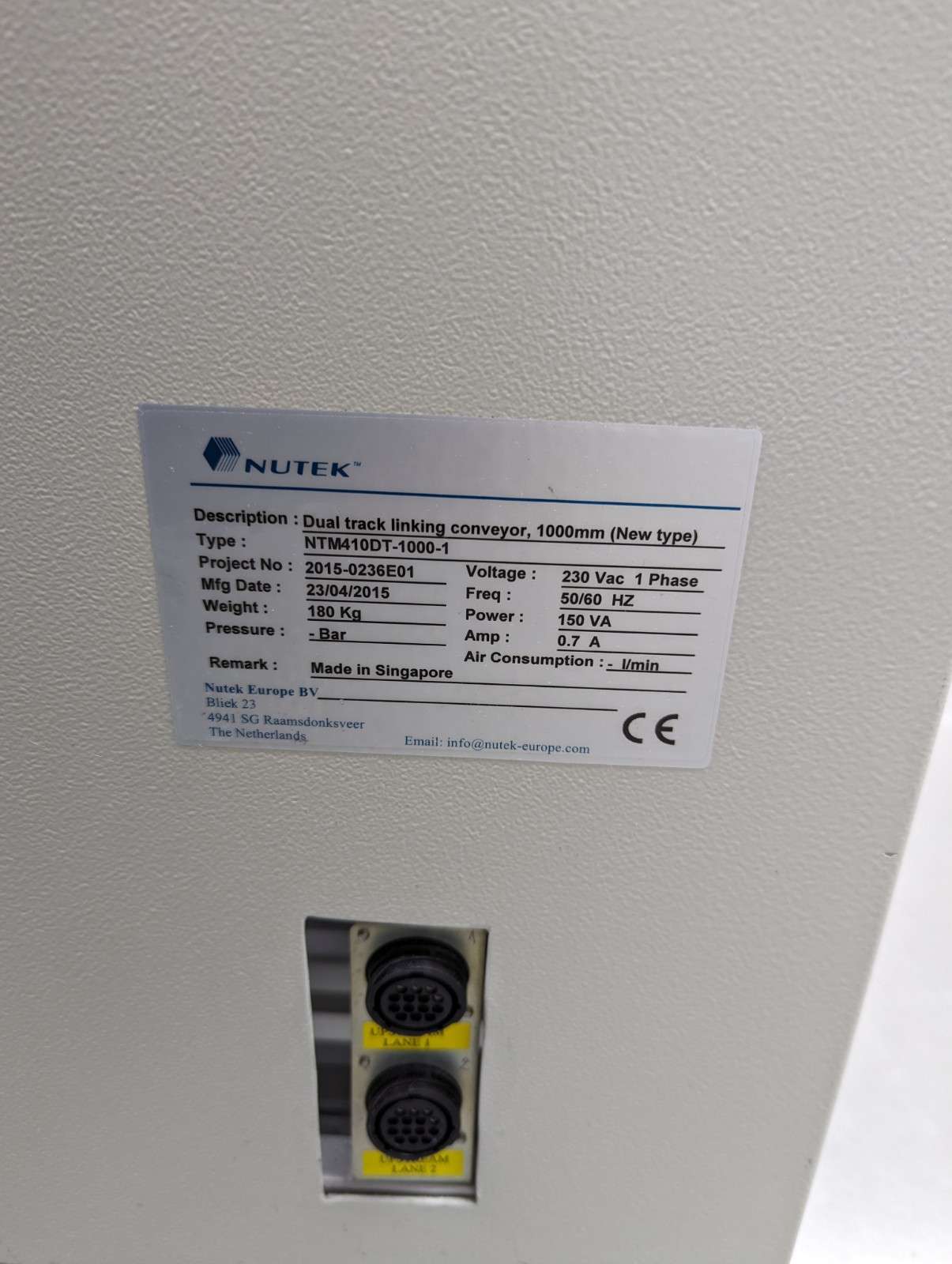

Serial Nr.: 2015-0236E01

Year of Manufacture: 2015

Direction: Left to Right, 1^st Track Front Fix, 2^nd track Rear Fix

PCB size: 70 – 250mm (W) / 80 – 330mm (L)

PCB thickness: 0.60 – 1.60mm

Component Height: Top: 30mm max/ Below: 30mm max

Transfer Height: 950mm (+25/-40mm)

Voltage:230V, 50/60Hz

Pressure: 4-6 Bar

Dimension (in mm): 1000(W) x 1100(L) x 1160(H)

Weight: 180Kg
